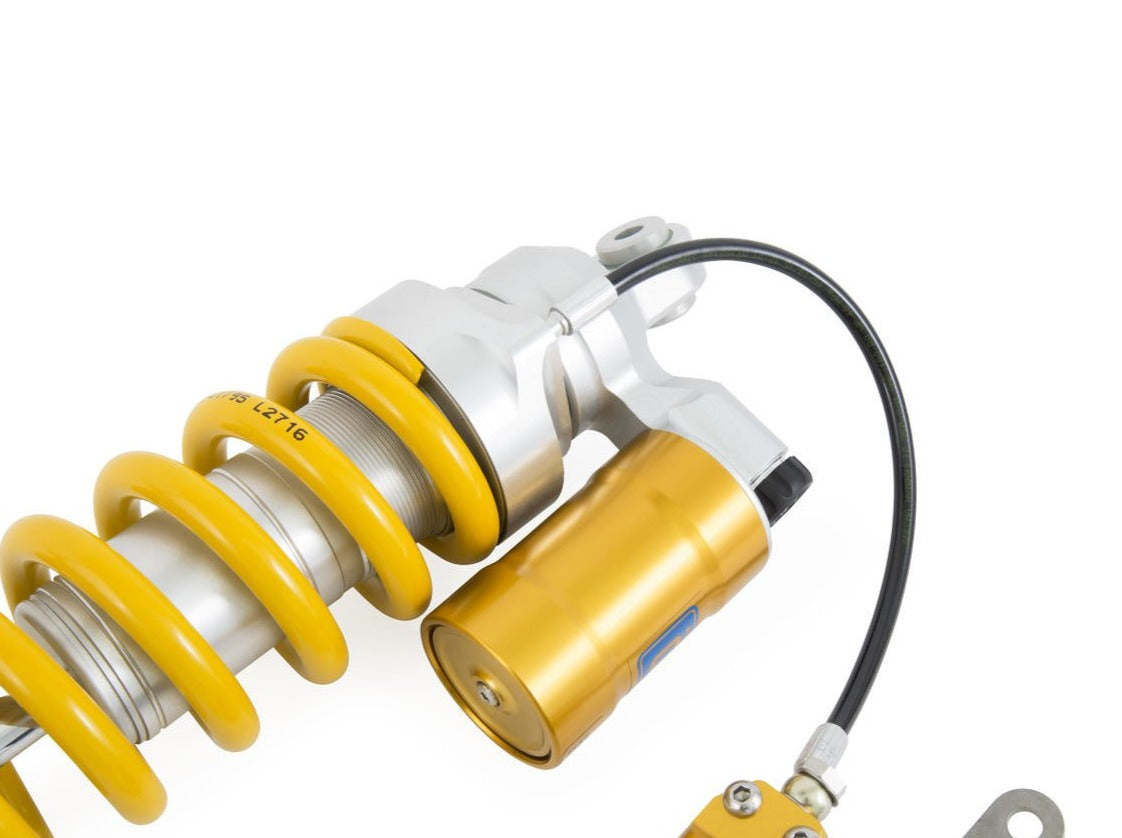

YA818 - ÖHLINS Yamaha Ténéré 700 Rear Shock Absorber

YA818 - ÖHLINS Yamaha Ténéré 700 Rear Shock Absorber

€1.039,00 EUR
€1.039,00 EUR
Sale Sold out

Rear shock absorber by Öhlins for Yamaha Ténéré 700.

    The classic monotube design of the Öhlins STX 46 shock absorber is a major upgrade to most bikes in the adventure segment. The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments.

    Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are.

    📜 Owner's manual

    🛠 Instructions for installation

    Length: 371mm mm
    Stroke: 94mm mm
    Rate N/mm: 70 N/mm
    Position: rear
    Mounted spring: 00698-19

    Type Code: S46PR1C1S

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    Öhlins Motorcycle S36C1 compression damping adjuster C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

    Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

    APPLICATION:

    Yamaha Ténéré 700 (2019 – )
