YA468 - ÖHLINS Yamaha MT-10 / YZF-R1 Rear Shock Absorber

Rear shock absorber by Öhlins for Yamaha MT-10 / YZF-R1.

Öhlins are continuously striving to improve their products on quality, consistency, and performance. Many components and setting improvements are combined into this shock.

The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency.

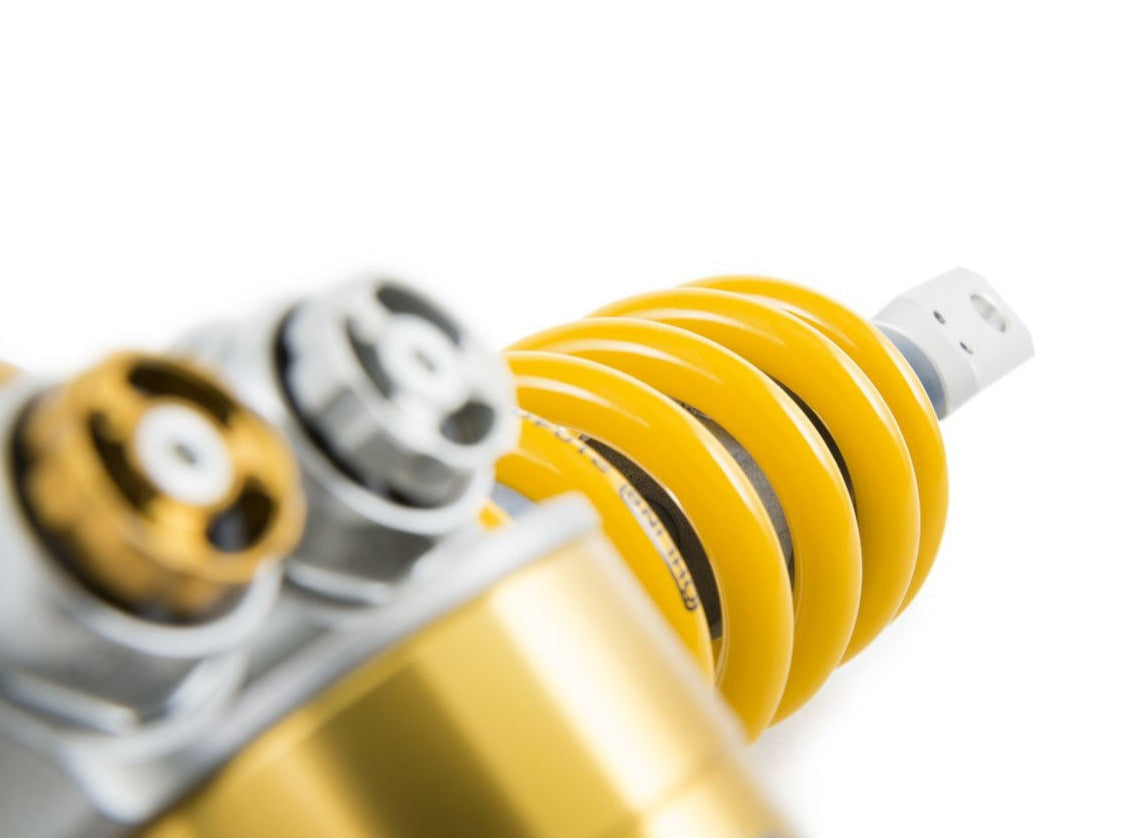

The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.

📜 Owner's manual

🛠 Instructions for installation

Type code: T36PR1C1LB

T: Twin tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

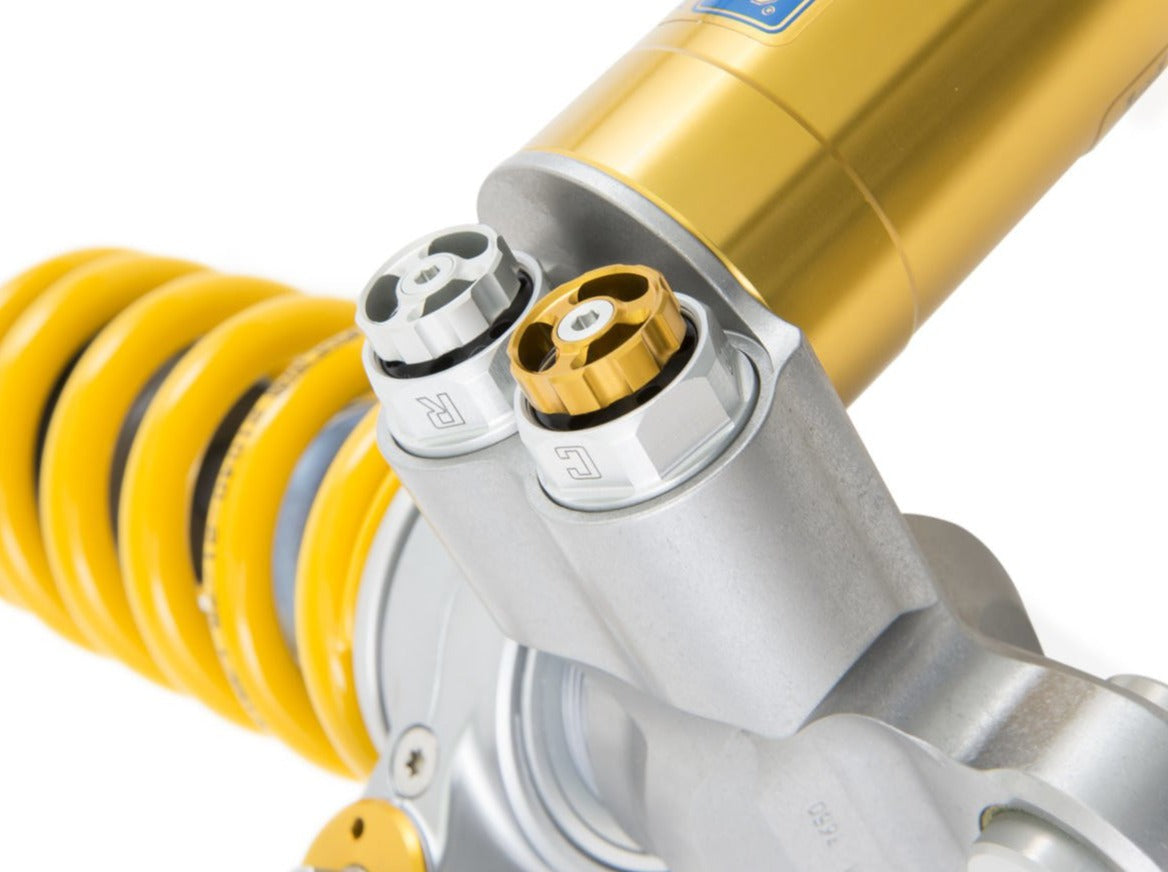

R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

L: Adjustable length.

B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

Yamaha MT-10 / SP / FZ-10 (2016 – 2021)
Yamaha MT-10 / SP (2022 – )

Yamaha YZF-R1 / R1M (2015 – )
