YA419 - ÖHLINS Yamaha MT-07 / XSR700 Rear Shock Absorber

YA419 - ÖHLINS Yamaha MT-07 / XSR700 Rear Shock Absorber

€549,00 EUR
€549,00 EUR
Sale Sold out

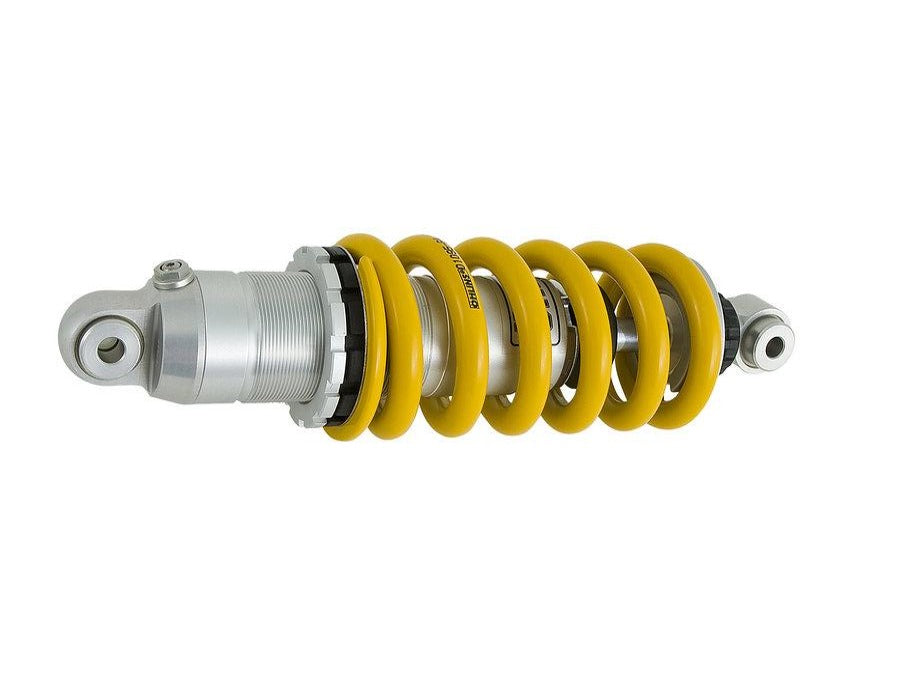

Rear shock absorber by Öhlins for Yamaha MT-07 / XSR700.

    Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

    This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

    Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

    📜 Owner's manual

    🛠 Instructions for installation

    Length: 312 mm
    Stroke: 61,5 mm
    Rate N/mm: 115 N/mm
    Position: rear
    Mounted spring: 01092-41

    Type Code: S46DR1

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

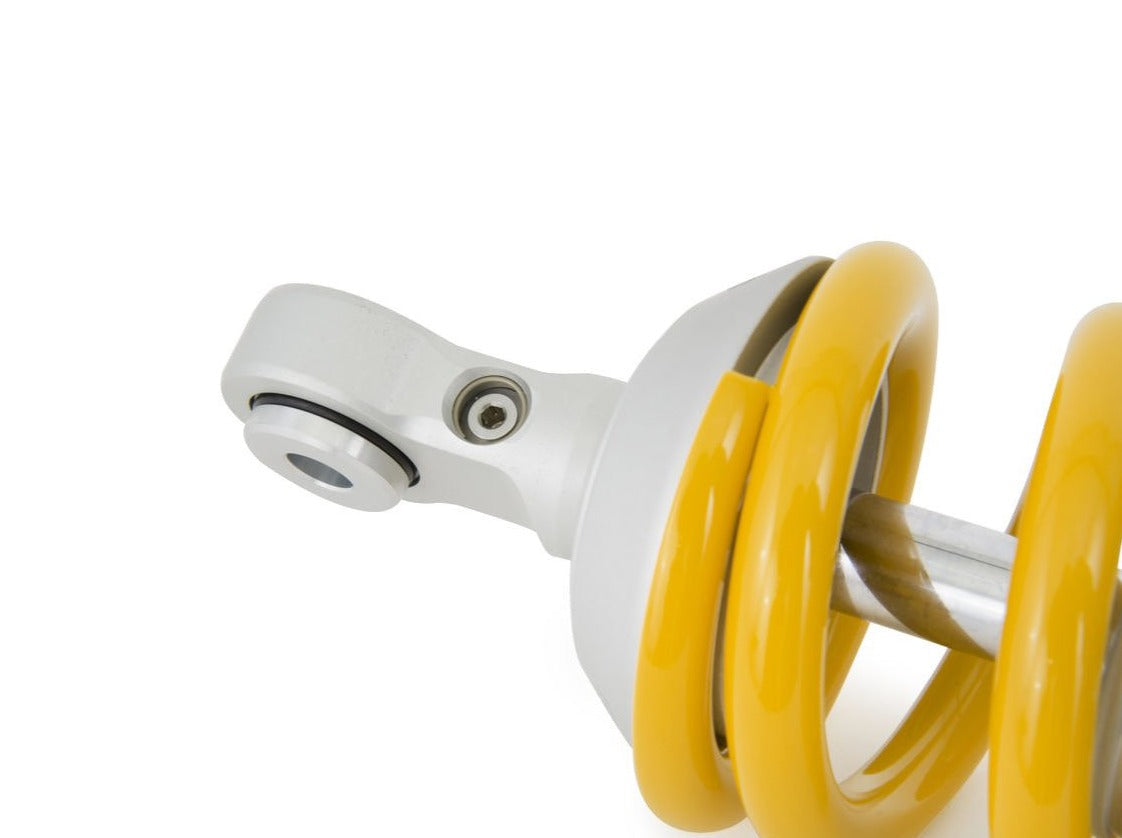

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    APPLICATION:

    Yamaha MT-07 / FZ-07 (2014 – )

    Yamaha XSR700 (2016 – )
