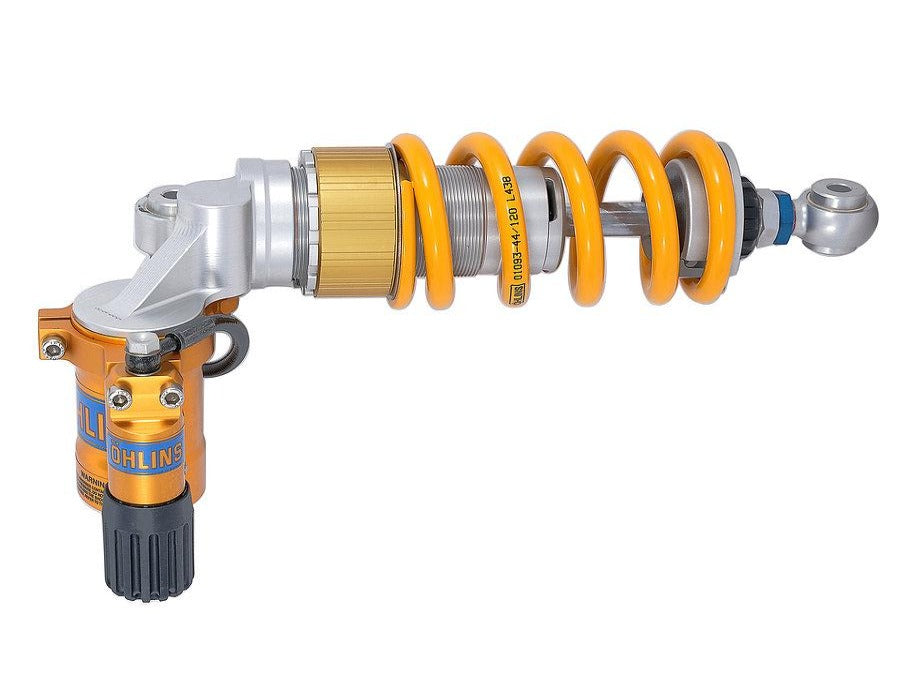

YA343 - ÖHLINS Yamaha YZF-R1 (04/06) Rear Shock Absorber

Rear shock absorber by Öhlins for Yamaha YZF-R1 models.

The classic monotube design of the Öhlins STX 46 shock absorber is a major upgrade to most bikes in the adventure segment. The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments.

Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S46PR1C2LS

S: Single tube

46: Piston diameter: 46 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C2: Adjustable high and low speed compression damping on S46 shocks. Hexagon and slot on the reservoir.

L: Adjustable length.

S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Yamaha YZF-R1 (2004 – 2006)
