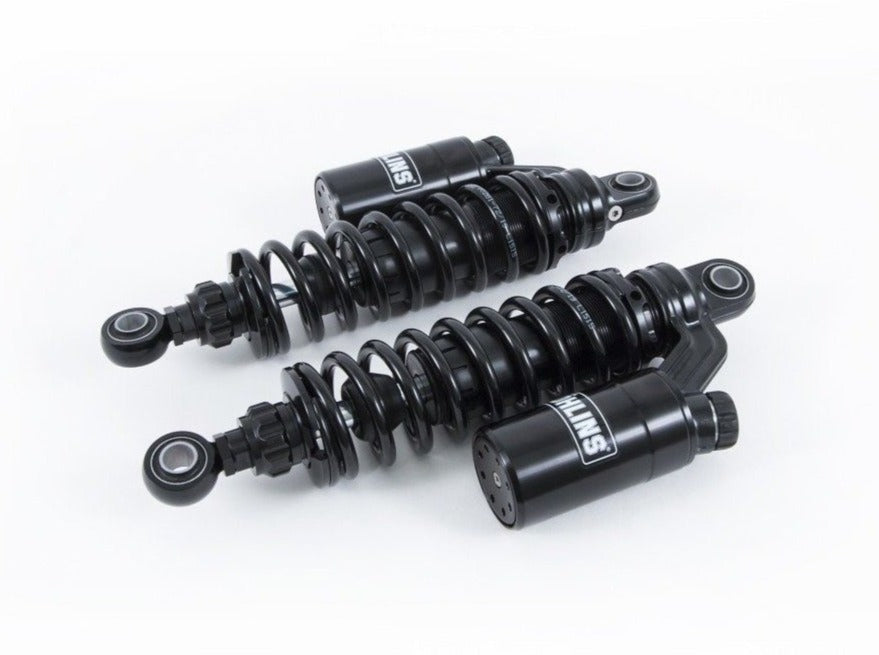

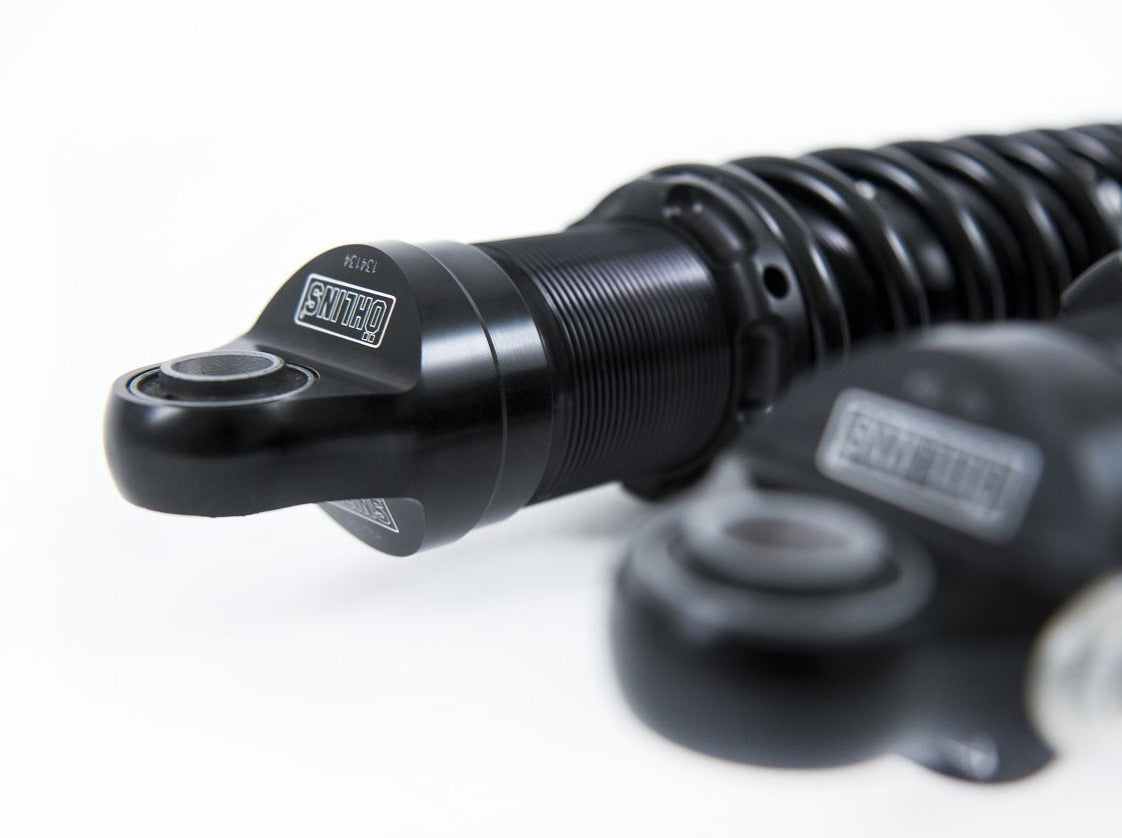

TR964 - ÖHLINS Triumph Scrambler 900 / Thruxton 900 Rear Shock Absorber

Rear shock absorber by Öhlins for Triumph Scrambler 900 / Thruxton 900.

Don’t let the subtle styling fool you! The STX 36 Blackline shock absorbers deliver well known Öhlins damping performance and quality.

With a selection of spring rates, compression, rebound and preload adjustment you can fine tune these shocks to suit your riding style.

From cruising mountain roads to being playful on the throttle, the STX 36 Blackline shocks are developed for riders wanting nothing but perfect ride characteristics.

📜 Owner's manual

🛠 Instructions for installation

Type Code: S36PR1C1L

S: Single tube

36: Piston diameter: 36 mm

P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

L: Adjustable length.

APPLICATION:

Triumph THRUXTON 900 (2003 – 2016)

Triumph SCRAMBLER 900 (2004 – 2016)
