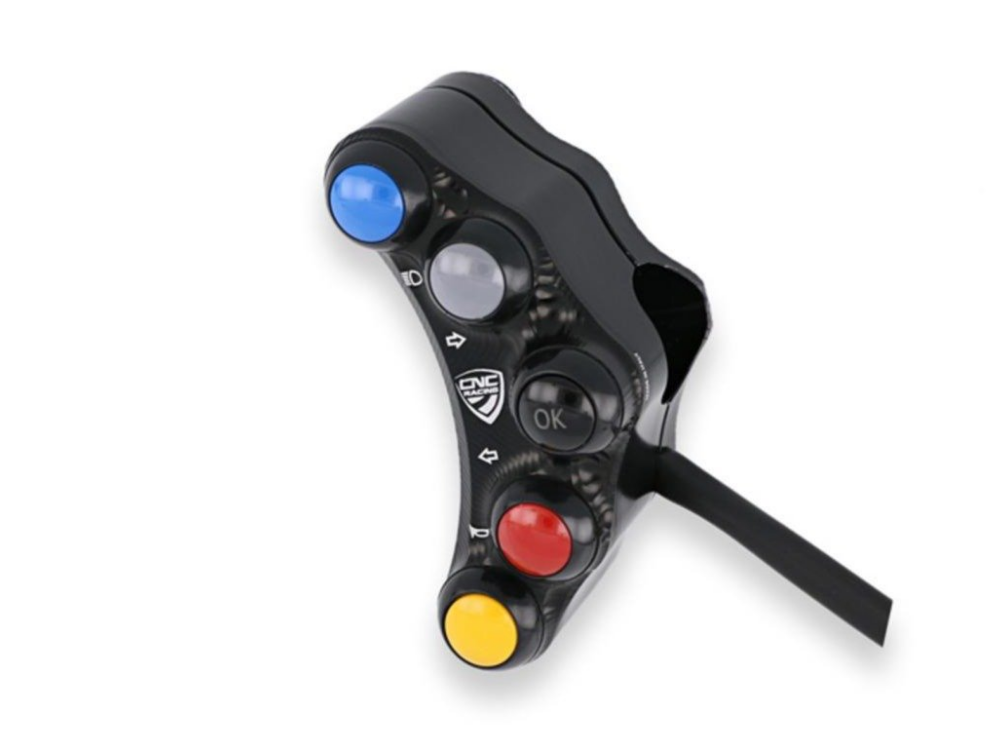

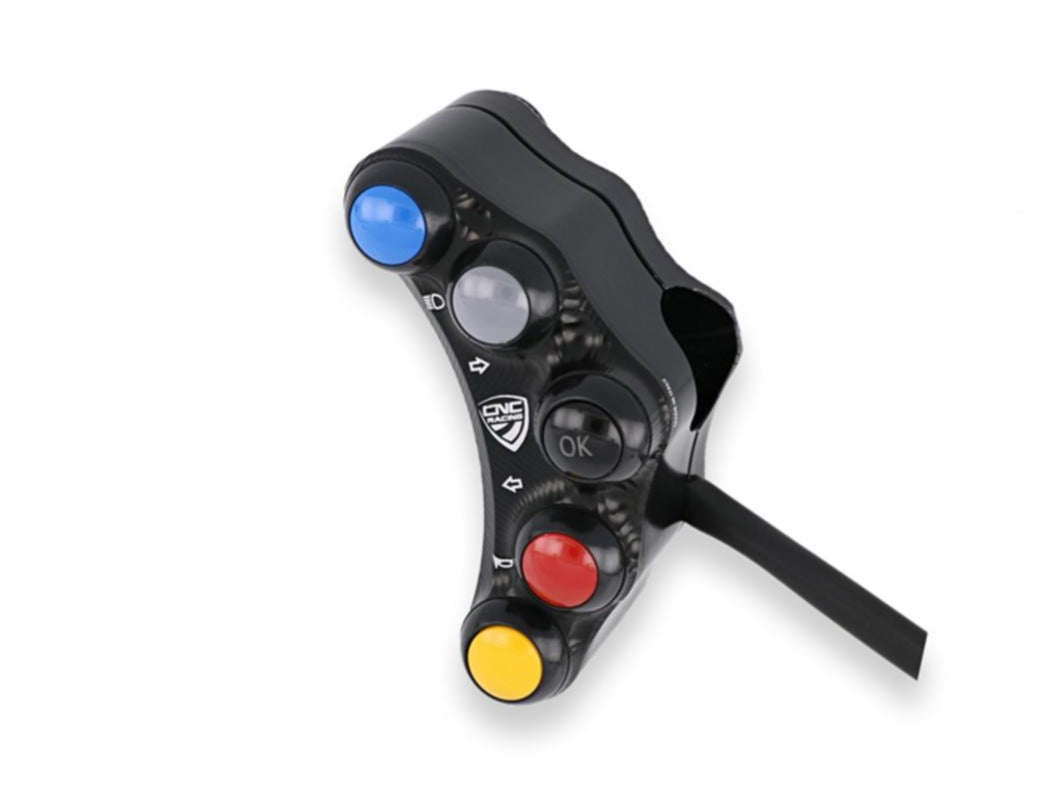

SWM09 - CNC RACING MV Agusta Brutale / Dragster 6 Buttons Left Handlebar Switch (street edition)

The switch body is machined from full 7075 aluminum (ergal) bars and has then undergone a hard black anodizing process that enhances processing with CNC machinery.

All the buttons compliant with the IP67 military standard. The switch itself is water resistant. The operation of all buttons is guaranteed by over 700,000 cycles.

Assembly is plug & play and very easy: just dismantle the original switch with the tools recommended by the manufacturer, then fit the CNC Racing switch connecting the plug to the bike original cable. Nothing else is required and you can always go back to the original configuration without any modification.

Front buttons
Blue - Beam
Grey - Turn indicator right
Black - OK
Red - Turn indicator left
Yellow - Horn

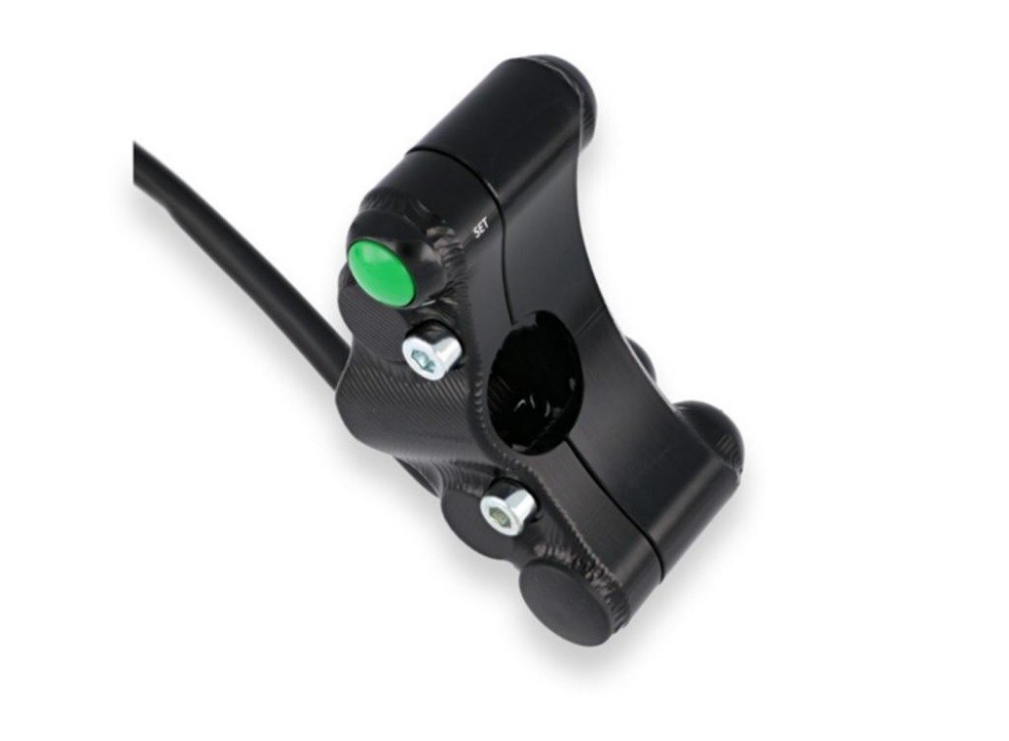

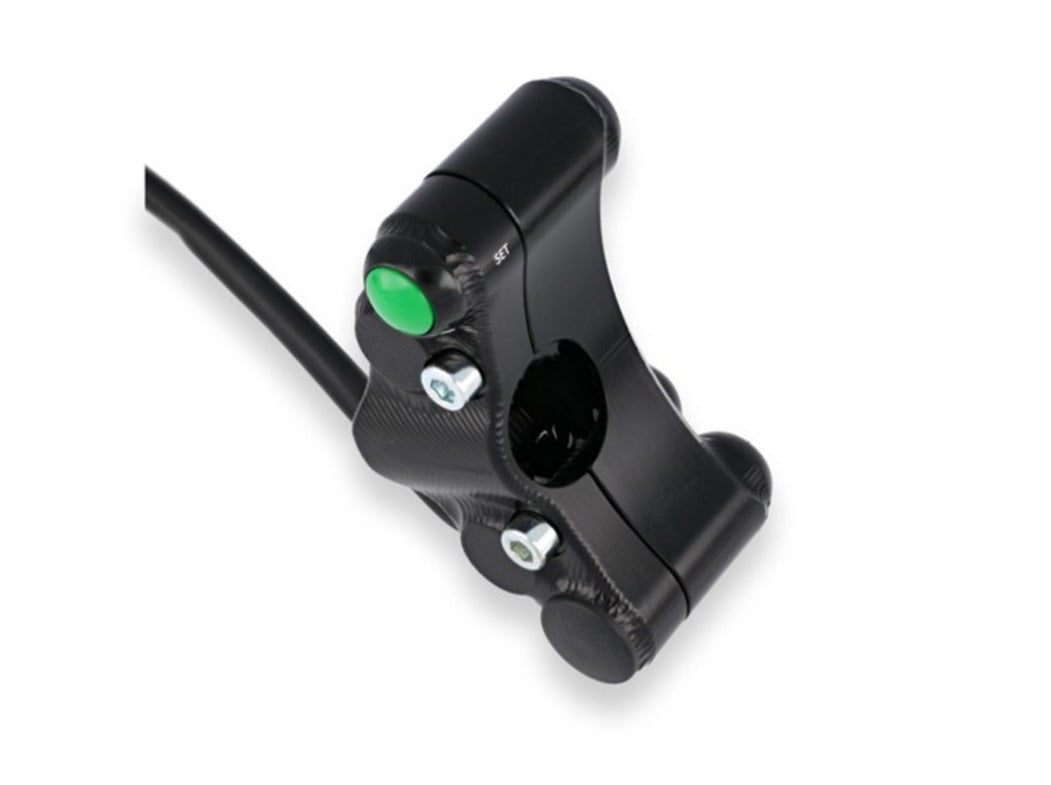

Rear buttons
Green - Set

APPLICATION:

MV Agusta BRUTALE 800 (2016 – )
MV Agusta BRUTALE 800 RR (2017 – )
MV Agusta BRUTALE 800 RC (2018 – )

MV Agusta DRAGSTER 800 RR (2018 – )
MV Agusta DRAGSTER 800 RC (2018 – )
