Ohlins

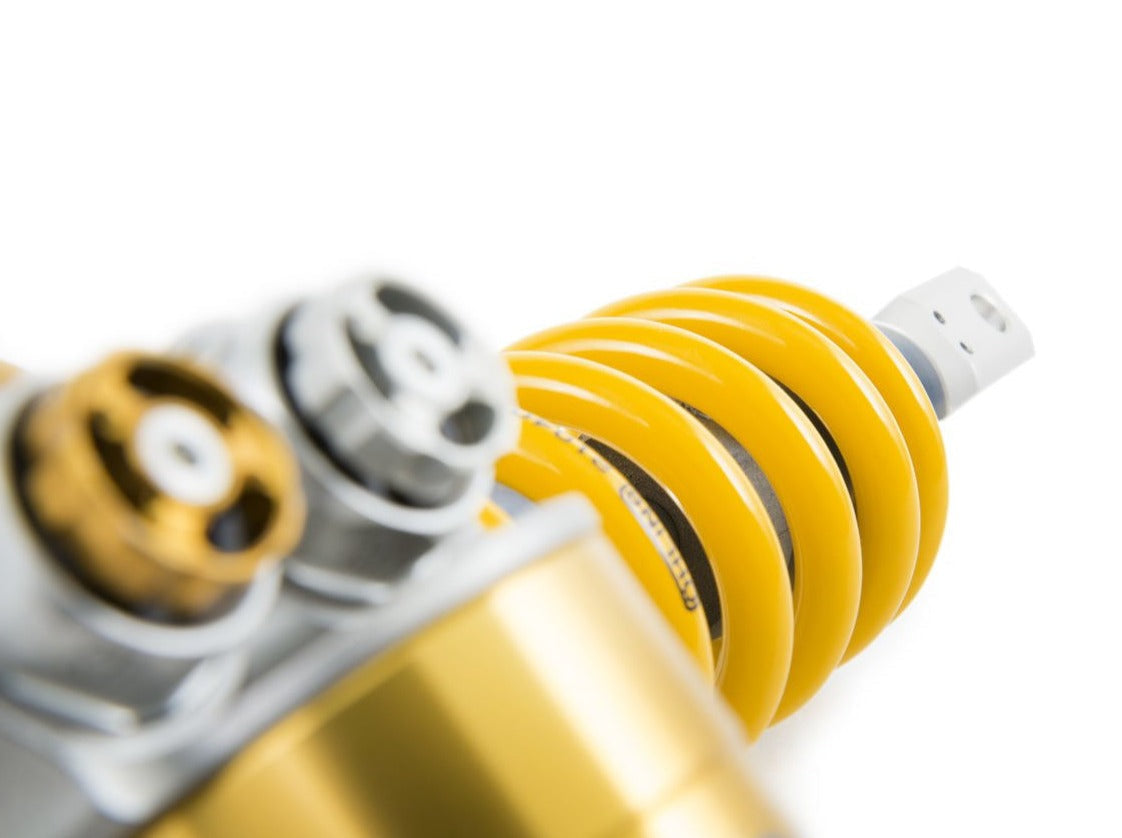

SU469 - ÖHLINS Suzuki GSX-R600 / GSX-R750 (11/18) Rear Shock Absorber

SU469 - ÖHLINS Suzuki GSX-R600 / GSX-R750 (11/18) Rear Shock Absorber

Regular price €1.309,00 EUR
Regular price Sale price €1.309,00 EUR
Sale Sold out

Rear shock absorber by Öhlins for Suzuki GSX-R600 / GSX-R750.

The TTX Road & Track is developed for the latest supersport models as a complement to the top of the line TTX GP shock. The TTX RT has a competitive price but still offers great performance for the road and track day enthusiast. The shock is based on the TTX 36 with its race proven technology. It has a traditional C-spanner type pre load adjustment, easily accessible rebound and compression adjustment on the cylinder head. The result is a shock absorber with the long term technology developments from Öhlins experience in MotoGP and WSBK.

📜 Owner's manual

🛠 Instructions for installation

Length: 319 (+2/-4) mm
Stroke: 65 mm
Rate N/mm: 95 N/mm
Position: rear
Mounted spring: 21040-31

Type Code: T36PR1C1LB

Twin tube T: Twin tube

Piston diameter 36: Piston diameter: 36 mm

Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle TTX36 R1 rebound damping adjuster
Öhlins Motorcycle TTX GP R1 rebound damping adjuster R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle L L: Adjustable length.

Öhlins Motorcycle B B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

Suzuki GSX-R600 (2011 – 2018)

Suzuki GSX-R750 (2011 – 2018)
