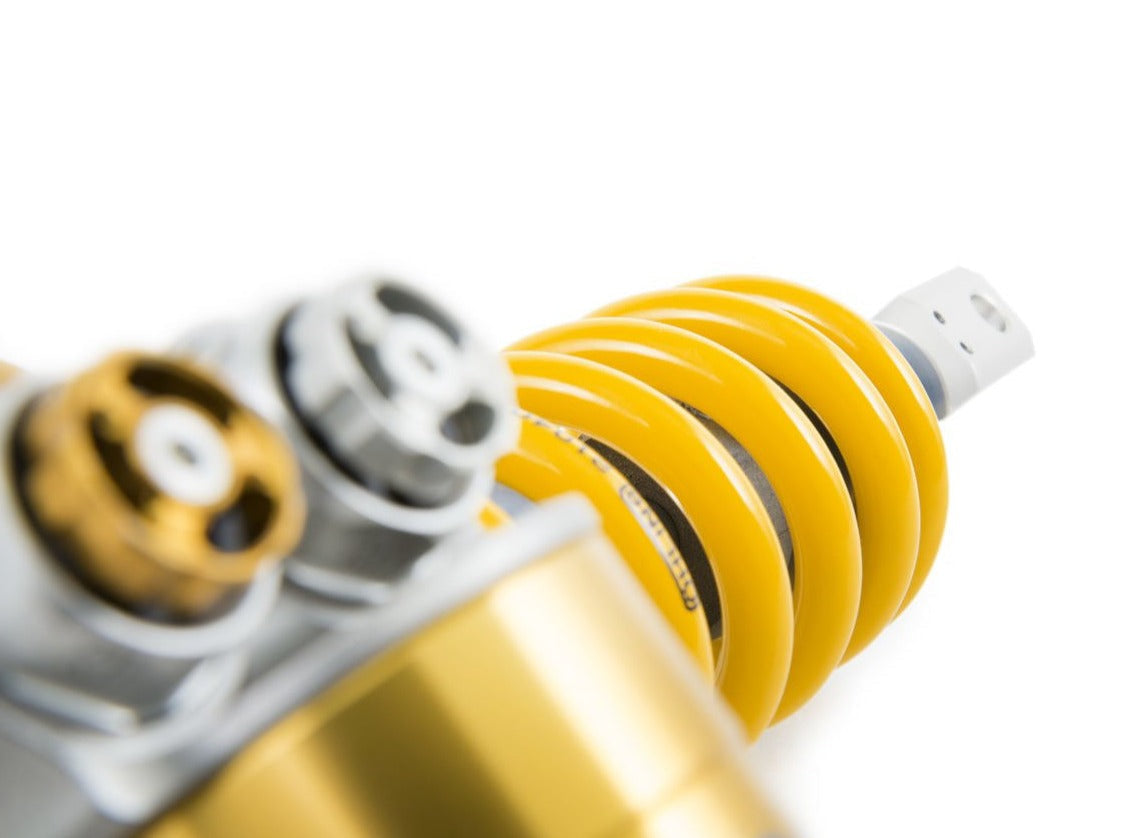

SU466 - ÖHLINS Suzuki GSX-R1000 (09/16) Rear Shock Absorber

SU466 - ÖHLINS Suzuki GSX-R1000 (09/16) Rear Shock Absorber

€1.309,00 EUR
€1.309,00 EUR
Sale Sold out

Rear shock absorber by Öhlins for Suzuki GSX-R1000 / 1000R.

Öhlins are continuously striving to improve their products on quality, consistency, and performance. From the latest research and development there are many components and setting improvements that are combined into this shock.

The TTX GP features a new type of valve which gives better feedback to the rider, also a new piston and band which together with the new valves enhances grip, stability, feedback, and consistency.

The new adjuster knobs make it easier to make changes on the fly with or without tools compared to the old design.

📜 Owner's manual

🛠 Instructions for installation

Length: 320 +4/-2 mm
Stroke: 63 mm
Rate N/mm: 95 N/mm
Position: rear
Mounted spring: 21040-31

Type Code: T36PR1C1LB

Twin tube T: Twin tube

Piston diameter 36: Piston diameter: 36 mm

Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle TTX36 R1 rebound damping adjuster
Öhlins Motorcycle TTX GP R1 rebound damping adjuster R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle L L: Adjustable length.

Öhlins Motorcycle B B: Integrated hydraulic spring preload adjuster. Adjuster wheel or hexagon on the adjuster.

APPLICATION:

Suzuki GSX-R1000 / 1000R (2009 – 2016)
