SU026 - ÖHLINS Suzuki GSX1300R Hayabusa (08/12) Rear Shock Absorber

SU026 - ÖHLINS Suzuki GSX1300R Hayabusa (08/12) Rear Shock Absorber

€1.289,00 EUR
€1.289,00 EUR
Sale Sold out

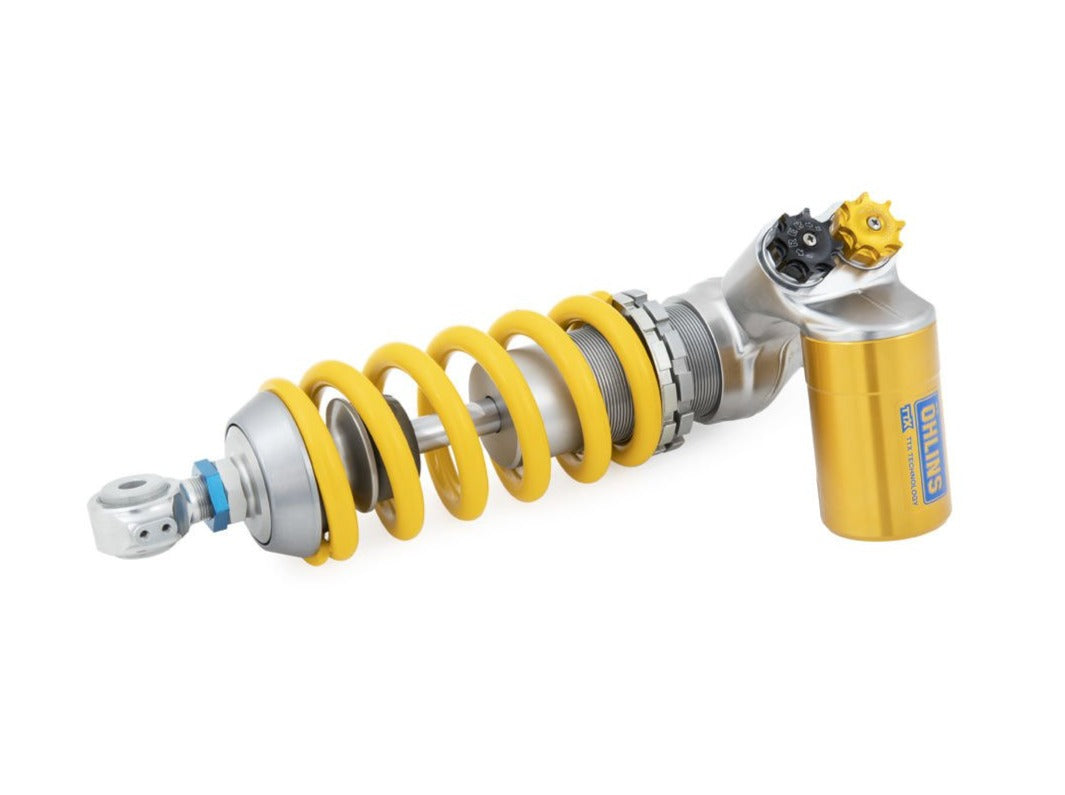

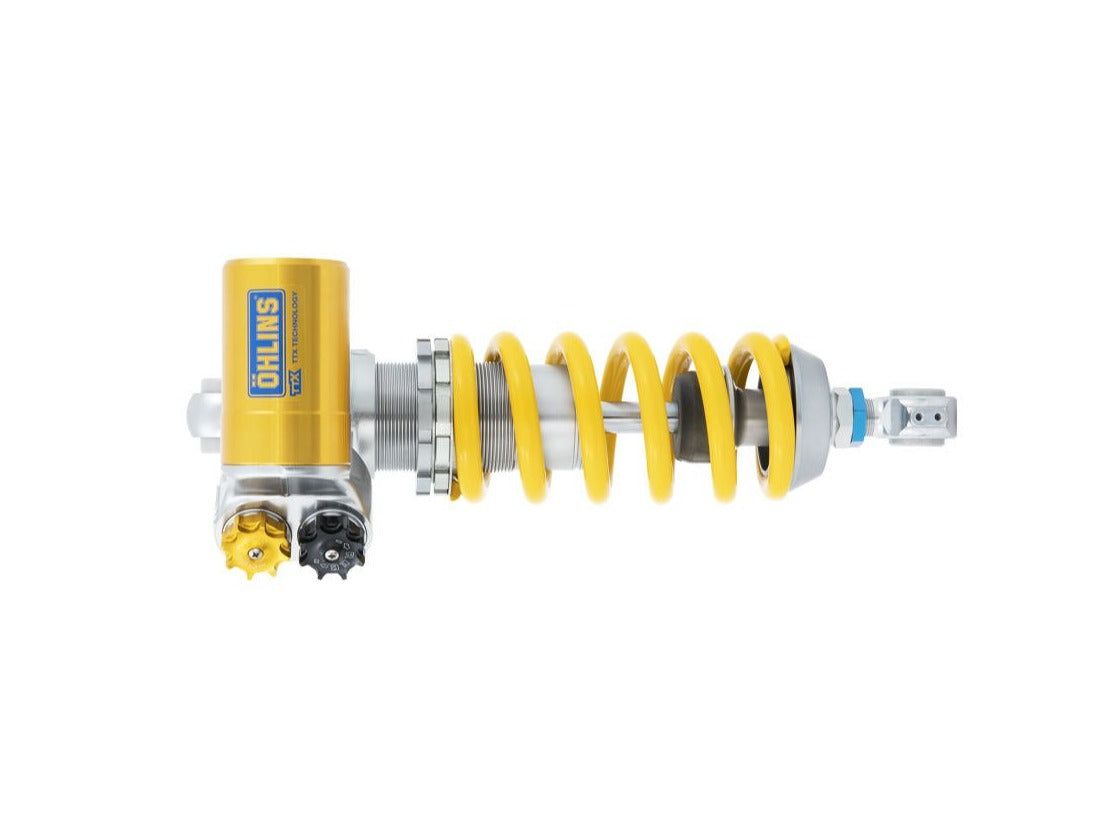

Rear shock absorber by Öhlins for Suzuki GSX1300R Hayabusa.

The TTX Road & Track is developed for the latest supersport models as a complement to the top of the line TTX GP shock. It has a competitive price but still offers great performance for the road and track day enthusiast.

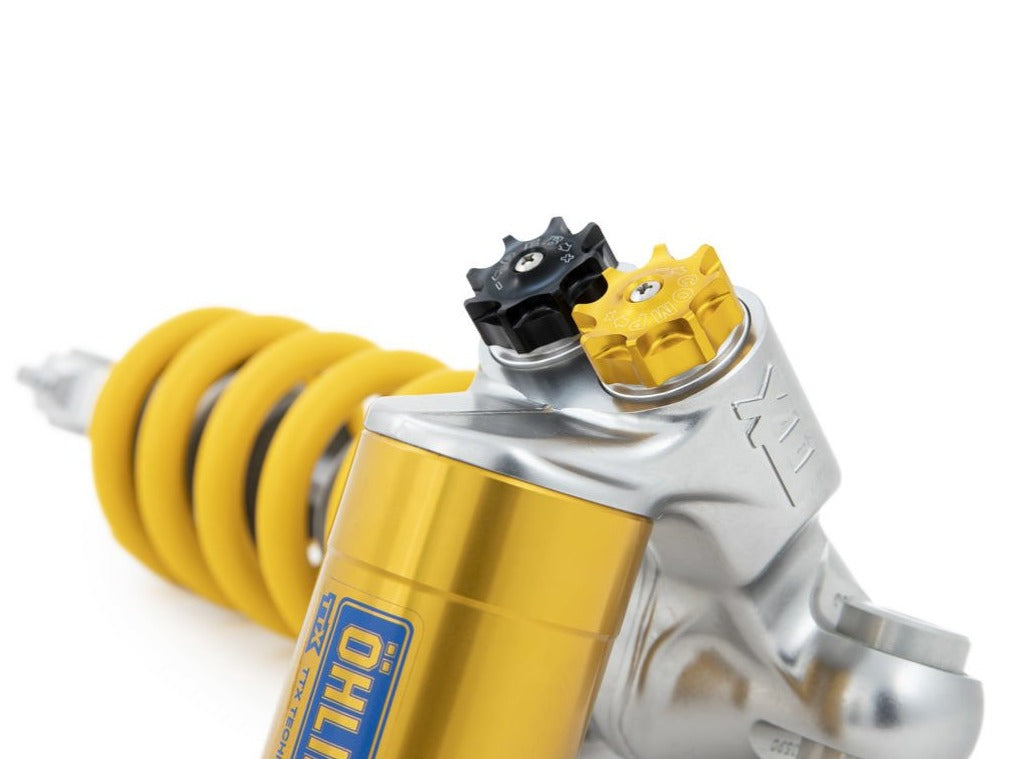

The shock is based on the TTX 36 with its race proven technology. It has a traditional C-spanner type pre load adjustment, easily accessible rebound and compression adjustment on the cylinder head.

The result is a shock absorber with the long term technology developments from Öhlins experience in MotoGP and WSBK.

📜 Owner's manual

🛠 Instructions for installation

Length: 330 +4/-2 mm
Stroke: 65 mm
Rate N/mm: 140 N/mm
Mounted spring: 01095-54

Type Code: T36PR1C1LS

Twin tube T: Twin tube

Piston diameter 36: Piston diameter: 36 mm

Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle TTX36 R1 rebound damping adjuster
Öhlins Motorcycle TTX GP R1 rebound damping adjuster R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle L L: Adjustable length.

Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

Suzuki GSX1300R Hayabusa (2008 – 2012)
