Ohlins

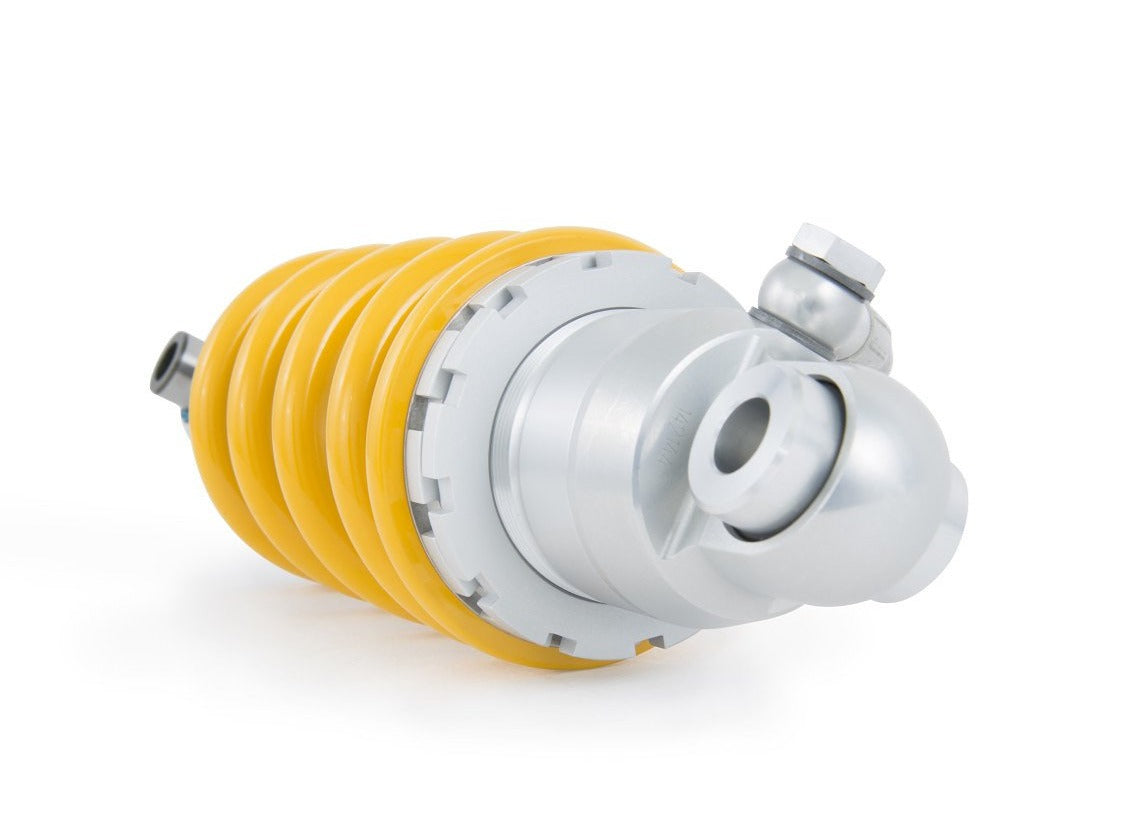

KT303 - ÖHLINS KTM 390 RC (14/16) Rear Shock Absorber

KT303 - ÖHLINS KTM 390 RC (14/16) Rear Shock Absorber

€809,00 EUR
€809,00 EUR
Sale Sold out

Rear shock absorber by Öhlins for KTM 390 RC.

    Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

    📜 Owner's manual

    🛠 Instructions for installation

    Length: 300 +9/-3 mm
    Stroke: 63 mm
    Rate N/mm: 105 N/mm
    Position: rear
    Mounted spring: 61091-36


    Type Code: S46HR1C1L

    Single tube S: Single tube

    Piston diameter 46: Piston diameter: 46 mm

    Öhlins Motorcycle type H H: Monotube high pressure gas type of shock absorber with hose mounted external reservoir.

    Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

    Öhlins Motorcycle S36C1 compression damping adjuster C1: Adjustable compression damping. Adjuster wheel or slot on the reservoir.

    Öhlins Motorcycle L L: Adjustable length.

    APPLICATION:

    KTM 390 RC (2014 – 2016)
