KA906 - ÖHLINS Kawasaki ER-6 Rear Shock Absorber

KA906 - ÖHLINS Kawasaki ER-6 Rear Shock Absorber

€549,00 EUR
€549,00 EUR
Sale Sold out

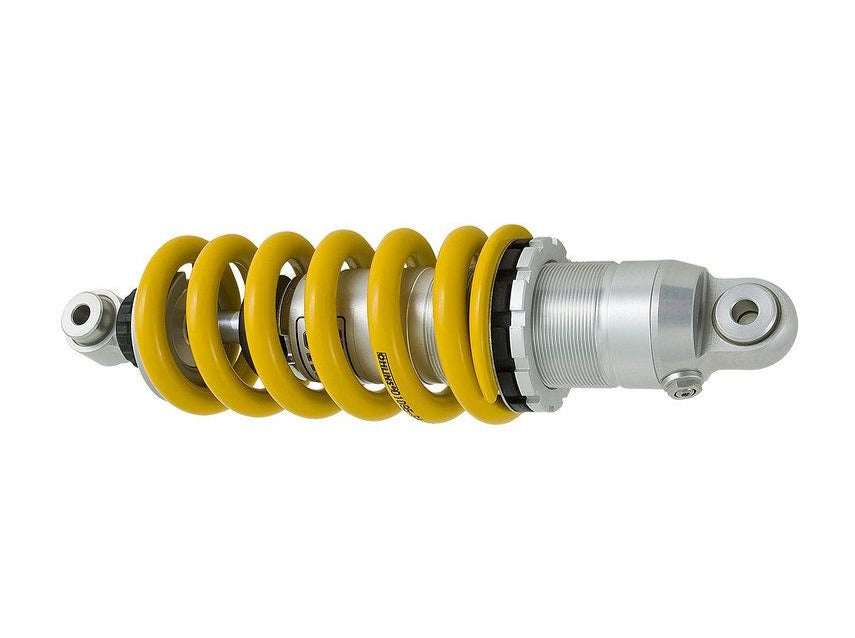

Rear shock absorber by Öhlins for Kawasaki ER-6N / ER-6F.

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length: 290 mm
Stroke: 51,5 mm
Rate N/mm: 170 N/mm
Mounted spring: 01093-69


Type Code: S46DR1

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

APPLICATION:

Kawasaki ER-6N (2009 – 2016)

Kawasaki ER-6F (2009 – 2011)
