KA110 - ÖHLINS Kawasaki Ninja 1000 / Z1000SX Rear Shock Absorber

KA110 - ÖHLINS Kawasaki Ninja 1000 / Z1000SX Rear Shock Absorber

€799,00 EUR
€799,00 EUR
Sale Sold out

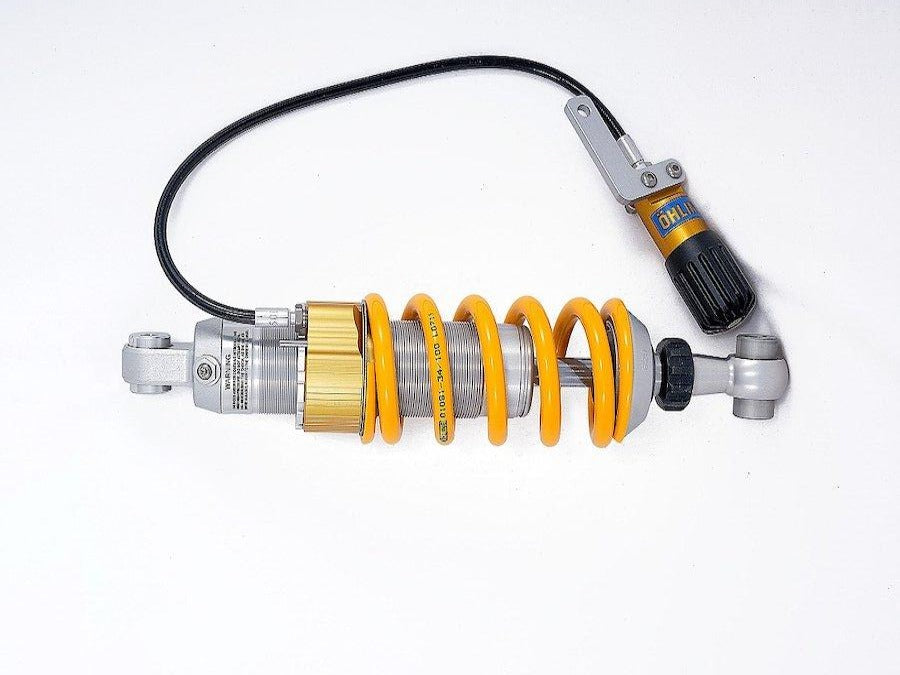

Rear shock absorber by Öhlins for Kawasaki Ninja 1000 / Z1000SX.

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes. This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston. Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length: 356 mm
Stroke: 61 mm
Rate N/mm: 100 N/mm
Position: rear
Mounted spring: 01091-34

Type Code: S46DR1S

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster

APPLICATION:

Kawasaki NINJA 1000 / Z1000SX (2011 – 2019)
