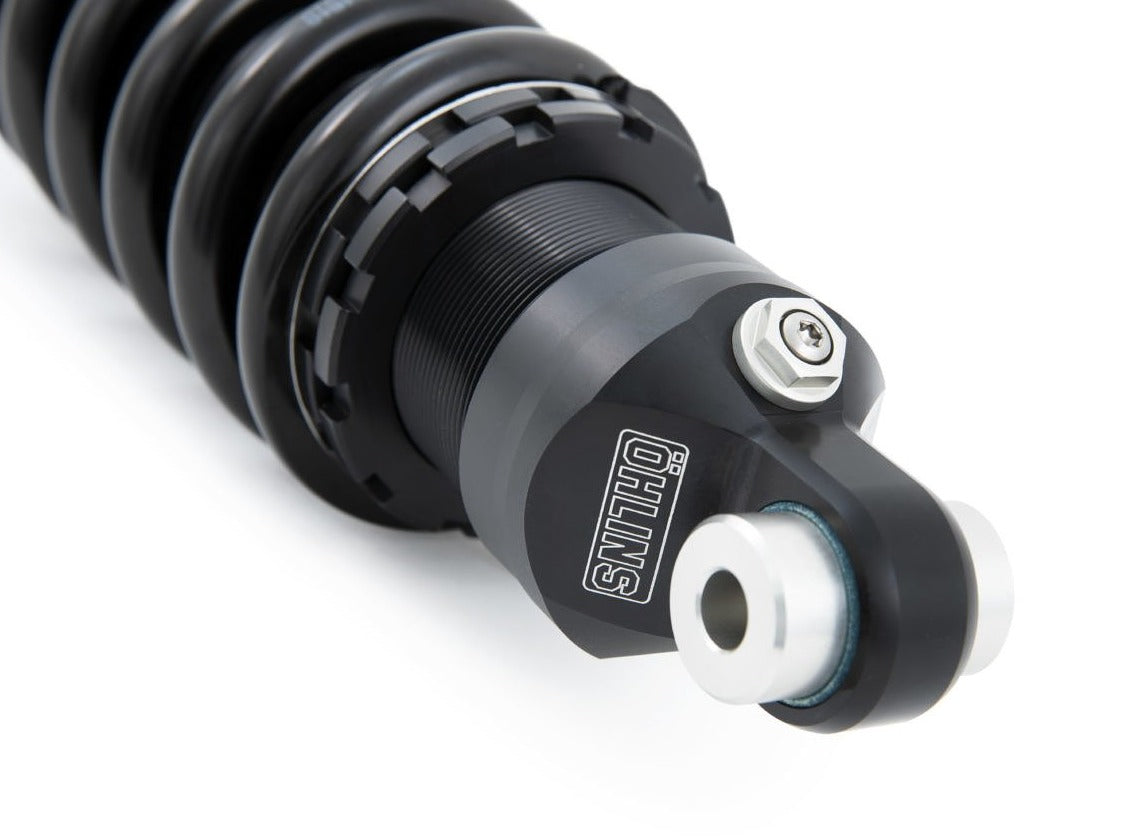

DU615 - ÖHLINS Ducati Scrambler Shock Absorber (STX 46 Street; black)

STX 46 Blackline street shock absorber by Ohlins for Ducati Scrambler 400 / 800.

Öhlins well proven STX 46 Street series is the perfect upgrade for sportive street bikes.

This high-pressure gas type shock absorber comes with an internal gas reservoir and with a 46 mm main piston.

Depending on the application the shock absorber features a mechanic or a hydraulic preload adjustment as well as adjustable rebound damping.

📜 Owner's manual

🛠 Instructions for installation

Length:	296 mm
Stroke:	58,5 mm
Rate N/mm:	95 N/mm
Position:	rear
Mounted spring:	62091-31
Packaging unit:	pieces

Type Code: S46DR1

S: Single tube

46: Piston diameter: 46 mm

D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

APPLICATION:

Ducati SCRAMBLER 800 Icon (2015 – )

Ducati SCRAMBLER 800 Full Throttle (2015 – )

Ducati SCRAMBLER 800 Café Racer (2015 – )

Ducati SCRAMBLER 400 Sixty2 (2016 – )
