BM146 - ÖHLINS BMW R1200GS / R1250GS Rear Shock Absorber

BM146 - ÖHLINS BMW R1200GS / R1250GS Rear Shock Absorber

Regular price €1.259,00 EUR
Regular price Sale price €1.259,00 EUR
Sale Sold out

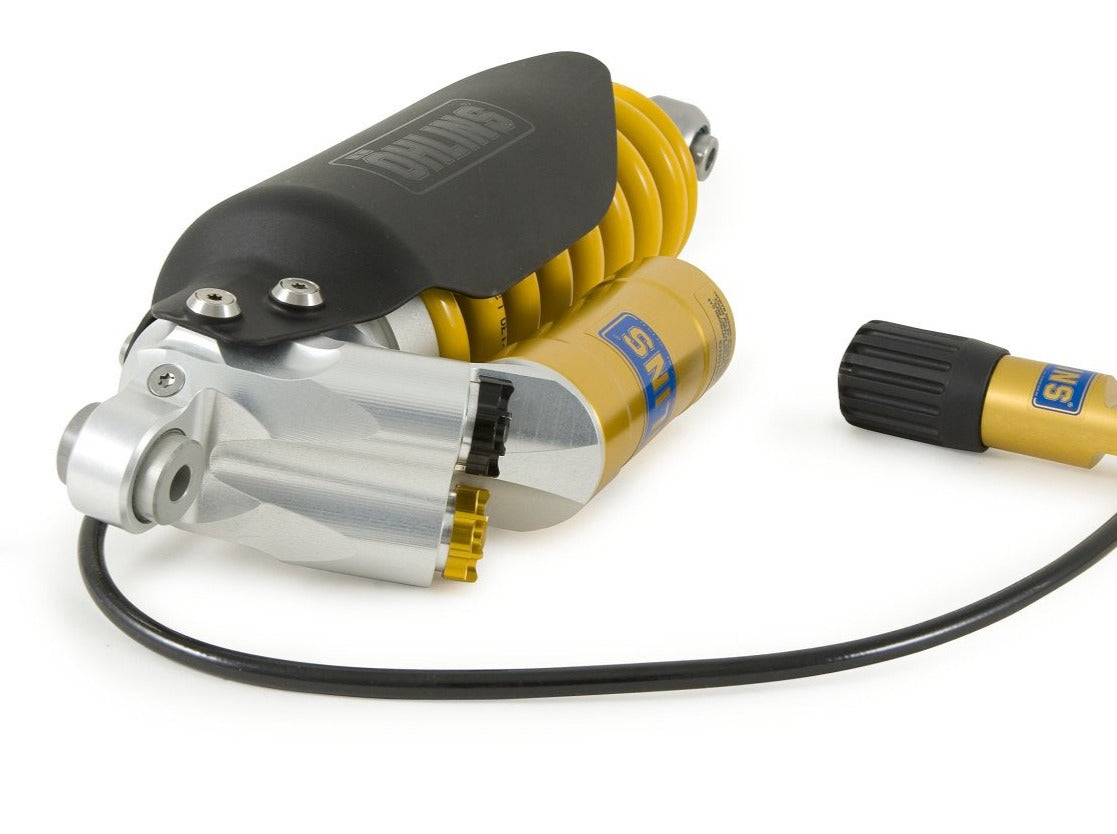

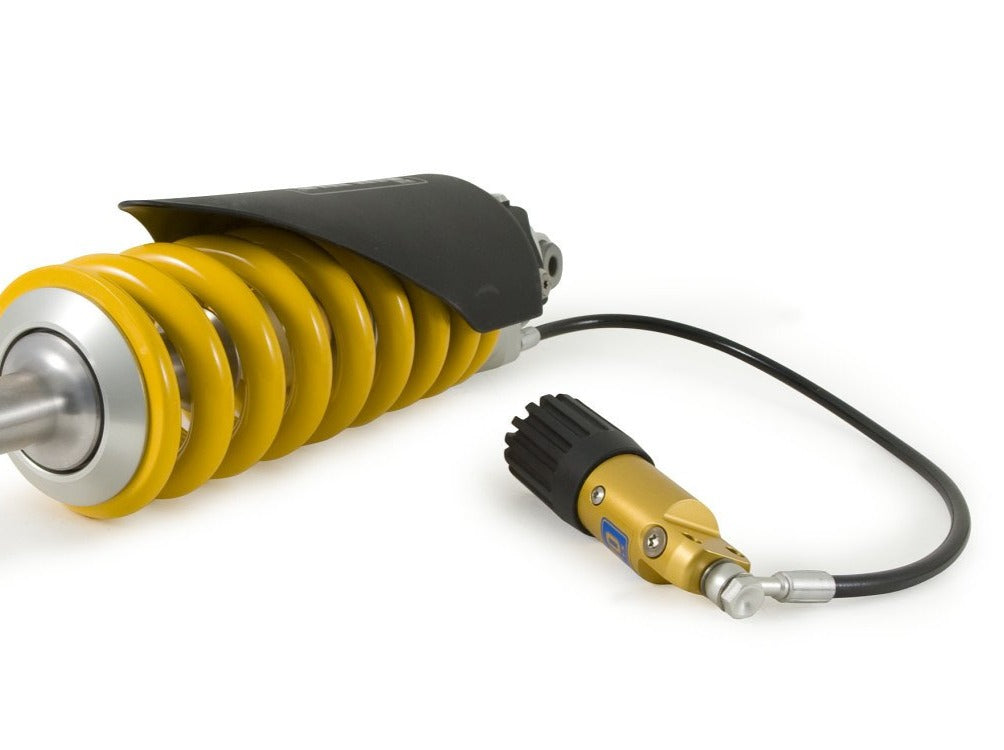

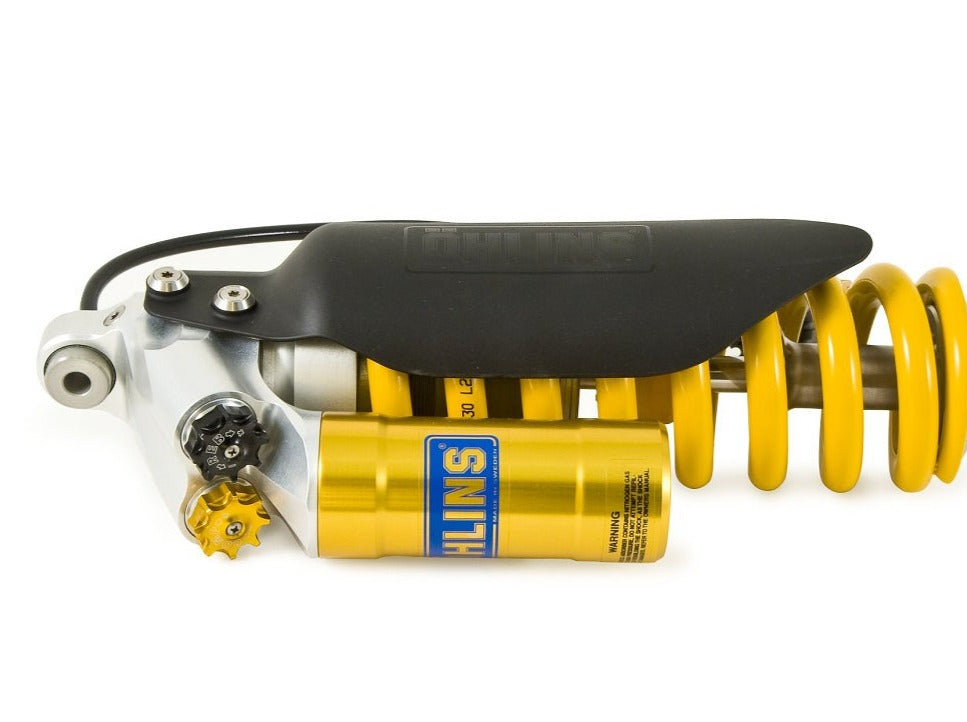

Rear shock absorber by Öhlins for BMW R1200GS / R1250GS.

Designed for the BMW R1200GS, the Öhlins TTX 36 and TTX 39 shock absorbers improve on feedback, control and comfort. Of course, both front and rear shocks benefit from all the TTX advantages, such as individually adjustable compression and rebound damping and eliminated risk of cavitation. Developed exclusively for the adventure segment, the rear TTX 39 shock is designed specifically to cope with the varying load conditions of on and off road use.

📜 Owner's manual

🛠 Instructions for installation

Length: 402.5 mm
Stroke: 75 mm
Rate N/mm: 140 N/mm
Position: rear
Mounted spring: 01103-54


Type Code: T39PR1C1S

Twin tube T: Twin tube

Piston diameter 39: Piston diameter: 39 mm

Öhlins Motorcycle type P P: Monotube high pressure gas type of shock absorber with external “piggy back” reservoir.

Öhlins Motorcycle TTX36 R1 rebound damping adjuster
Öhlins Motorcycle TTX GP R1 rebound damping adjuster R1: Adjustable rebound damping. Black adjuster on TTX36 shocks / silver adjuster on TTX GP shocks.

Öhlins Motorcycle TTX36 C1 compression damping adjuster
Öhlins Motorcycle TTX GP C1 compression damping adjuster C1: Adjustable compression damping. Gold adjuster on TTX36 / TTX GP shocks.

Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster.

APPLICATION:

BMW R1200GS (2013 – 2018)

BMW R1250GS (2019 – )
