Ohlins

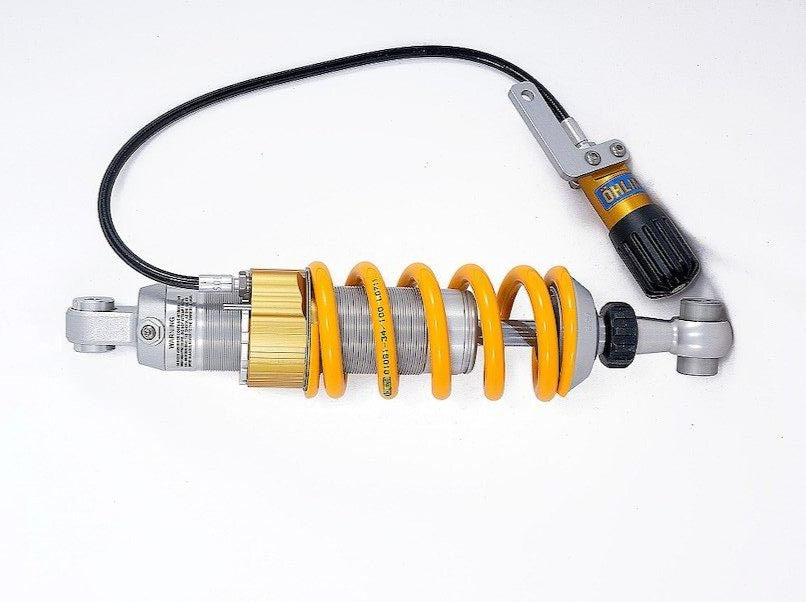

BM940 - ÖHLINS BMW R1150GS Rear Shock Absorber

BM940 - ÖHLINS BMW R1150GS Rear Shock Absorber

€799,00 EUR
€799,00 EUR
Sale Sold out

Rear shock absorber by Öhlins for BMW R1150GS.

The design is well proven, features a large 46 mm piston delivering reliable performance in all possible environments. Available in a wide range of configurations, with piggyback or hose mounted reservoir and with or without spring preload adjuster, the STX 46 can be made to fit in virtually any mounting space no matter what the constraints are. The STX 46 is available for most major models in the adventure segment.

📜 Owner's manual

🛠 Instructions for installation

Length: 383 mm
Stroke: 63 mm
Rate N/mm: 140 N/mm
Position: rear
Mounted spring: 01095-54


Type Code: S46DR1S

Single tube S: Single tube

Piston diameter 46: Piston diameter: 46 mm

Öhlins Motorcycle type D D: Monotube high pressure gas type of shock absorber with internal reservoir in the main body.

Öhlins Motorcycle R1 rebound damping adjuster R1: Adjustable rebound damping on single tube shocks. Adjuster wheel above the end eye.

Öhlins Motorcycle S S: Hose mounted hydraulic spring preload adjuster

APPLICATION:

BMW R1150GS (1999 – 2004)
